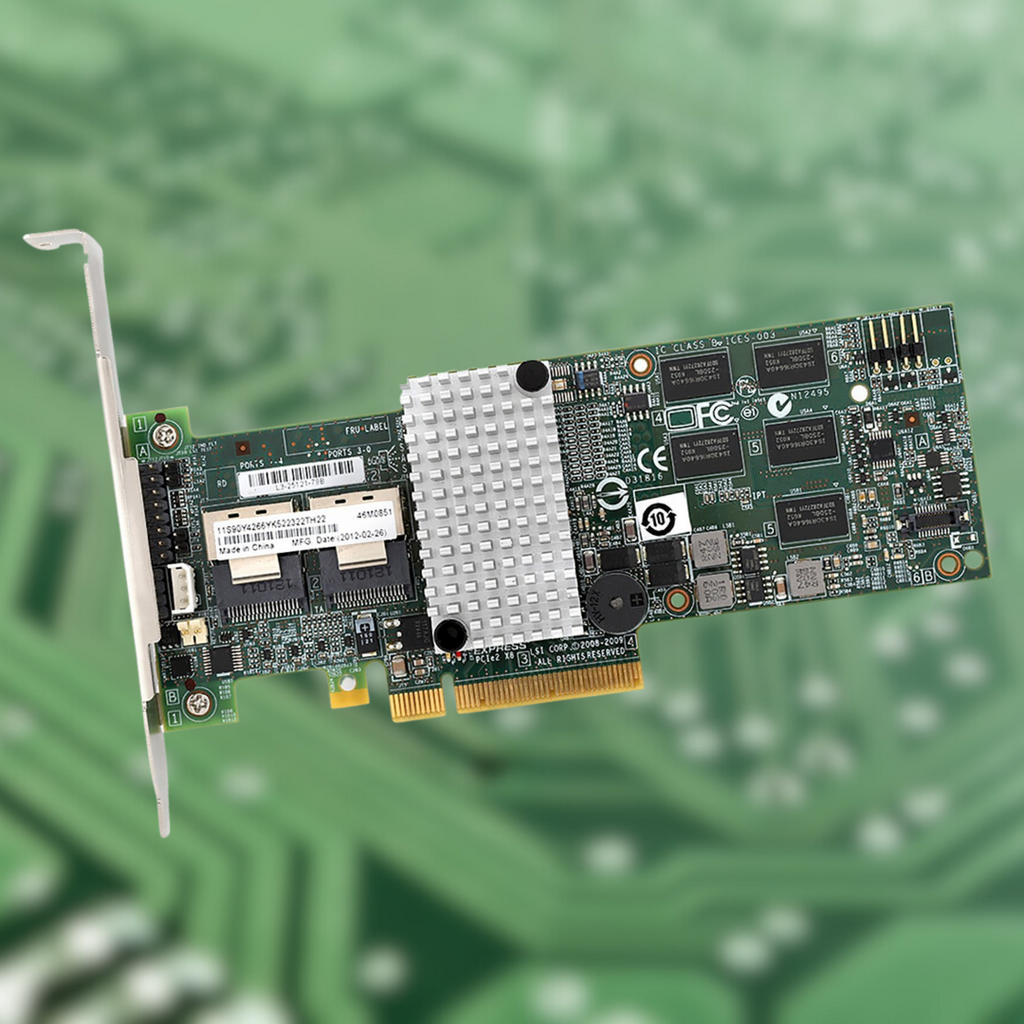

Building a powerful and reliable homelab often hinges on one critical component: storage. Whether you're setting up a robust Network Attached Storage (NAS) solution using TrueNAS or unRAID, creating a virtualization powerhouse with Proxmox, or simply need to connect more drives than your motherboard allows, a Host Bus Adapter (HBA) card is frequently the answer.

But navigating the world of HBAs can seem daunting at first, with talk of SAS vs. SATA, IT mode vs. IR mode, different port types, and various chipsets. Getting it wrong can lead to compatibility headaches, performance bottlenecks, or limitations on your future expansion plans.

This guide is designed to cut through the confusion. We'll walk you through everything you need to know to confidently select the perfect HBA for your homelab needs. We'll cover the fundamental concepts, break down the key specifications to consider, highlight popular and reliable models favored by the homelab community, and touch on essential installation steps like firmware flashing and cable selection. By the end, you'll be equipped to choose an HBA that unlocks the full storage potential of your server.

Understanding HBA Basics

Selecting the right Host Bus Adapter (HBA) is crucial for building a reliable and performant storage solution in your homelab. HBAs act as the critical interface between your server's motherboard and your storage drives. Understanding a few key characteristics will help you navigate the options and choose the card that best suits your needs, whether you're building a NAS, a virtualization host, or a general-purpose server.

Internal vs. External Ports: Connecting Your Drives

One of the first things you'll notice when comparing HBAs is the type and number of ports they offer. These determine where you can connect your drives:

• Internal Ports (e.g., "8i"): As the name suggests, these ports are designed for connecting to drives located inside your server chassis. Cards with internal ports often use connectors like SFF-8087 (mini-SAS) on older models or the higher-density SFF-8643 (mini-SAS HD) on newer cards supporting higher speeds. The designation "8i" would mean the card has 8 internal lanes, typically presented as two SFF-8643 ports (4 lanes each).
• External Ports (e.g., "8e"): These ports are used to connect your server to external storage enclosures, like disk shelves (JBODs - Just a Bunch Of Disks). Common connectors for external ports include SFF-8088 (mini-SAS) or the more modern SFF-8644 (mini-SAS HD), which are designed for robust external cabling. An "8e" card provides 8 external lanes, usually via two SFF-8644 ports.
• Mixed Ports (e.g., "4i4e"): Some HBAs offer a combination of both internal and external ports. A "4i4e" card, for example, provides 4 lanes for internal drives and 4 lanes for connecting to an external enclosure, offering flexibility for hybrid setups.

When choosing, consider your current and future storage layout. Will all your drives be inside the server, or do you plan to use an external disk shelf?

SAS vs. SATA Connectivity: Drive Compatibility and Performance

HBAs primarily use the SAS (Serial Attached SCSI) protocol, but understanding how it relates to SATA (Serial ATA) is vital:

• SAS Protocol: SAS is an enterprise-grade standard known for its performance, reliability, and features like dual-port connectivity (allowing multiple paths to a drive for redundancy, known as multipath I/O). SAS HBAs support speeds like 6Gb/s and 12Gb/s (and even higher on the latest generations).
• SATA Protocol: SATA is the standard consumer-grade interface, typically topping out at 6Gb/s.
• The Key Advantage: A SAS HBA is backward compatible with SATA drives. This means you can connect both high-performance SAS drives and cost-effective SATA drives to a SAS HBA. However, a dedicated SATA controller (like those built into most motherboards) can only connect to SATA drives.
• Homelab Sweet Spot: For most homelab enthusiasts, using a SAS HBA paired with readily available, larger-capacity SATA drives offers the best balance of cost, flexibility, and performance. You get the robust connection capabilities of SAS without needing to invest solely in more expensive SAS drives unless specific performance needs dictate it.

Raw HBA vs. RAID Capabilities: How Drives are Presented

HBAs generally fall into two categories based on how they handle connected drives:

• Raw HBAs (IT Mode): These cards operate in what's commonly called "Initiator Target" (IT) mode. They simply act as a straightforward connection pipe, "passing through" the drives directly to the operating system. The OS sees each drive individually, exactly as it is. This is the preferred mode for users implementing software-defined storage solutions like ZFS (TrueNAS, Proxmox), unRAID, Storage Spaces Direct, or mdadm, as these systems need direct, unhindered access to the raw drives to manage redundancy and data integrity effectively. It also offers maximum flexibility and generally simplifies data recovery if the HBA itself fails (as the drives aren't locked into a proprietary hardware format).
• Hardware RAID Cards: These cards have onboard processors and firmware designed to manage drives in RAID arrays (RAID 0, 1, 5, 6, 10, etc.) independently of the operating system. The OS typically sees only the logical volume(s) created by the RAID card, not the individual underlying drives. While once essential, their role in homelabs has diminished with the rise of powerful software RAID. They might still be considered for specific use cases like booting an OS from a RAID 1 mirror where the OS lacks robust boot-time software RAID support, or in scenarios where offloading RAID parity calculations from the main CPU is a specific goal (though this is less common now).

IT Mode vs. IR Mode: Understanding Firmware Flavors

Delving deeper, especially when looking at popular LSI/Broadcom cards often found affordably on the used market, you'll encounter firmware modes:

• IT (Initiator Target) Mode: As described above, this firmware provides direct, raw access to the drives. It offers no hardware RAID functionality. This is the ideal mode for ZFS, unRAID, Proxmox VE (with ZFS or Ceph), GlusterFS, and most virtualization scenarios where direct disk access is needed or preferred. Performance is generally optimal for software solutions, and drive management is handled entirely by the OS.
• IR (Integrated RAID) Mode: This firmware provides basic hardware RAID capabilities directly on the card (often simple RAID 0, 1, 10). While technically a form of hardware RAID, it's generally less feature-rich than dedicated, high-end RAID cards. It abstracts the drives from the OS, presenting logical volumes instead. This mode is generally avoided when using advanced software RAID solutions, as it adds an unnecessary layer of complexity and potential compatibility issues. Data recovery can also be more challenging if the card fails.

Cross-flashing: Many popular enterprise SAS controllers (especially LSI/Broadcom models) can be "cross-flashed" from their original firmware (which might be IR or a full hardware RAID firmware) to IT mode firmware. This is a common practice in the homelab community to repurpose affordable, used enterprise cards for use with software-defined storage. If you're buying a used card, ensure it's either already in IT mode or is a model known to be easily flashable to IT mode.

Key Specifications to Consider

Beyond the fundamental choice between internal/external ports and IT/IR mode, several technical specifications significantly impact an HBA's performance, compatibility, and suitability for your homelab. Paying attention to these details ensures you get a card that meets your current needs and offers room for future growth.

Port Count and Bandwidth: How Many Drives and How Fast?

• Port Count: HBAs commonly come in configurations with 4, 8, or 16 ports (often designated as 4i, 8i, 8e, 16i, etc.). However, this doesn't directly translate to the number of physical connectors on the card. Internal ports like SFF-8643 (mini-SAS HD) typically carry 4 SAS lanes each. Using breakout cables (e.g., SFF-8643 to 4x SATA/SAS), a single internal port can connect to 4 individual drives. So, an "8i" card usually has two physical SFF-8643 ports, supporting up to 8 drives directly.
• Bandwidth Calculation: The total potential throughput of the card depends on the SAS speed per lane and the number of lanes.
  • A 12Gb/s SAS-3 HBA provides 12 Gigabits per second per lane (roughly 1.5 Gigabytes second). An 8-port (which typically uses 8 lanes) card theoretically offers 8×12 Gb/s=96 Gb/s total bandwidth.
  • An older 6Gb/s SAS-2 8-port card would offer 8×6 Gb/s=48 Gb/s total bandwidth.
• Real-World Considerations: Remember this bandwidth is shared across all connected drives. While the total theoretical bandwidth is high, the performance per drive will depend on the number of drives active simultaneously and the limitations of the drives themselves (e.g., spinning rust HDDs vs. faster SSDs). PCIe interface limitations (discussed next) and protocol overhead also mean real-world speeds will be slightly lower than theoretical maximums. Always factor in potential future expansion – it's often better to get a card with more ports than you immediately need.

PCIe Interface: Connecting the Card to Your Motherboard

The Peripheral Component Interconnect Express (PCIe) slot you plug your HBA into dictates the maximum bandwidth between the card and the rest of your system.

• PCIe Generations & Speed: Each generation doubles the bandwidth per lane:
  • PCIe 2.0: approx. 500 MB/s per lane
  • PCIe 3.0: approx. 985 MB/s per lane
  • PCIe 4.0: approx. 2 GB/s per lane
  • PCIe 5.0: approx. 4 GB/s per lane
• PCIe Lanes: HBAs typically use x4 or x8 PCIe lanes. An x8 card requires a PCIe slot that can physically fit an x8 card and electrically provide 8 lanes to achieve full bandwidth. Plugging an x8 card into an x16 slot that only provides x4 lanes electrically will limit the card's potential bandwidth.
  • Matching Card to Slot: For a 12Gb/s SAS-3 8-port HBA (96 Gb/s or ≈12 GB/s theoretical max), a PCIe 3.0 x8 slot (≈7.88 GB/s) might become a bottleneck if you're using many fast SSDs simultaneously. However, for mechanical drives, even a PCIe 3.0 x4 slot (≈3.94 GB/s) is often sufficient. A PCIe 4.0 x4 slot (≈8 GB/s) is generally ample for most 8-port SAS-3 HBAs.
• Physical Fit and Cooling: Ensure you have a compatible physical slot available on your motherboard. Also, consider that some higher-end HBAs can generate significant heat and may require good chassis airflow or even have their own small fans.

Maximum Drive Support: Going Beyond Direct Connections

While an 8-port card connects 8 drives directly, SAS architecture allows for expansion.

• Hardware Limits: Using SAS expanders – devices that act like network switches for SAS – you can connect significantly more drives to a single HBA port. A typical HBA combined with expanders can support up to 128 or even 256 drives (or more, depending on the specific HBA chipset). Without an expander, you're limited to the number of direct ports (e.g., 8 drives for an 8i card using breakout cables).
• Operating System Limits: Modern operating systems generally handle a vast number of drives. Linux has very high theoretical limits, while Windows limits depend on the version and filesystem. FreeBSD (the basis for TrueNAS CORE) is also highly capable but ultimately limited by system resources.
• Resource Impact: Remember that managing many drives impacts system resources. Software RAID solutions like ZFS require RAM (often recommended as 1GB per TB of raw storage, though this varies), and parity calculations consume CPU cycles. Backing up and recovering large arrays also takes considerable time.

Supported Protocols and Speeds: Ensuring Compatibility

HBAs need to speak the right language at the right speed to communicate with your drives.

• Common Speeds: You'll primarily encounter:
  • SAS-3 (12Gb/s)
  • SAS-2 (6Gb/s)
  • SATA III (6Gb/s)
  • SATA II (3Gb/s)
• Backward Compatibility: Crucially, SAS HBAs are backward compatible. A SAS-3 (12Gb/s) card can communicate perfectly fine with SAS-2 (6Gb/s) drives and SATA III (6Gb/s) or SATA II (3Gb/s) drives. This is essential for homelabs where mixing drive types and speeds is common for cost-effectiveness.
• Protocol Differences: SAS offers advantages like full-duplex communication (sending and receiving data simultaneously) and more robust error handling compared to SATA's half-duplex nature.
• Speed Negotiation: The HBA and drive will automatically negotiate the highest speed they both support. If you mix 12Gb/s SAS drives and 6Gb/s SATA drives on the same HBA, each will run at its maximum respective speed, but overall performance on shared backplanes or expanders might be influenced by the presence of slower devices.

Boot Support Capabilities: Can You Boot From It?

While many homelab users boot from a separate SSD (NVMe or SATA) connected directly to the motherboard, some HBAs allow booting from attached drives.

• UEFI vs. Legacy BIOS: Modern systems use UEFI firmware. Ensure the HBA (and its firmware version) explicitly supports UEFI boot if you intend to boot an OS from a drive connected to it. Older systems might require legacy BIOS support (sometimes called an "Option ROM" or "OpROM"). Flashing firmware (e.g., to IT mode) can sometimes add or remove boot support, so check the specific firmware details.
• Boot Device: Verify if the card model and firmware combination allows booting from attached drives. Some IT mode firmwares remove the boot ROMs entirely to speed up system initialization.
• Boot Time: HBAs, especially those with many ports or active boot ROMs, need to initialize during the system's Power-On Self-Test (POST), which can add noticeable time to your server's boot process. Some cards or system BIOS/UEFI settings offer options to speed this up (like disabling the HBA's boot ROM if you aren't booting from it).

By carefully evaluating these specifications against your motherboard capabilities, drive choices, and intended use case (NAS, hypervisor, etc.), you can confidently select an HBA that forms the backbone of a robust and efficient homelab storage system.

Popular HBA Models for Homelabs

Navigating the HBA market can be simplified by focusing on a few popular and well-regarded models, particularly from LSI/Broadcom, which are widely available, especially on the used enterprise market.

• LSI/Broadcom Mainstays:
  • LSI 9211-8i (SAS2008 Chipset): Often considered the quintessential entry-level homelab HBA. It offers 8 internal 6Gb/s ports via two SFF-8087 connectors, uses a PCIe 2.0 x8 interface, and is famously easy to cross-flash to IT mode firmware. Look for common rebadges like the IBM M1015 or Dell H200. It's highly affordable (often $30-$60 used) and ideal for basic NAS builds or users starting out.
  • LSI 9207-8i (SAS2308 Chipset): A step up from the 9211-8i, the 9207-8i also provides 8 internal 6Gb/s ports (SFF-8087) but utilizes a faster PCIe 3.0 x8 interface, offering better performance potential, especially with SSDs. It generally consumes less power and is also readily flashable to IT mode. Expect prices around $50-$80 used, making it a great mid-range choice.
  • LSI 9300-8i (SAS3008 Chipset): For those needing higher speeds, the 9300-8i is a popular 12Gb/s SAS-3 option. It features 8 internal ports using the newer SFF-8643 connectors and a PCIe 3.0 x8 interface. It typically supports UEFI boot natively and is the go-to for performance-oriented builds or newer systems ($100-$150+ used).
• Adaptec Alternatives: While LSI/Broadcom dominates the homelab space due to easy IT mode flashing, Adaptec cards like the ASR-6805 (8-port, PCIe 2.0, 6Gb/s) or the higher-density ASR-71605 (16-port, PCIe 3.0, 6Gb/s) are also available, often starting as hardware RAID cards. Flashing them to a pure HBA mode can sometimes be more complex than with LSI cards. They are viable options, especially if found at a good price ($40-$200 used, depending on the model).
• New vs. Used Considerations: The vast majority of homelab users opt for used HBAs pulled from enterprise environments.
  • Pros of Used: Significant cost savings, proven reliability, and wide community support are major advantages.
  • Cons of Used: Lack of warranty, potential for prior heavy use, and the need to potentially update or cross-flash firmware are the main risks. Always buy from reputable sellers and test cards thoroughly.
  • When to Buy New: Consider buying new if you absolutely need a warranty, require the latest features out-of-the-box, are building a critical system where downtime is unacceptable, or simply prefer factory-fresh components.

Installation and Setup Considerations

Once you've selected your HBA, getting it running smoothly involves a few key steps, from potential firmware flashing to selecting the right cables and ensuring your system is prepared.

Flashing to IT Mode (If Necessary)

Many popular HBAs, especially used enterprise models, come with IR (Integrated RAID) or full hardware RAID firmware. For use with software-defined storage like ZFS or unRAID, you'll want to flash IT (Initiator Target) mode firmware, which provides direct pass-through access to the drives.

• Preparation:
  • Identify your card's chipset (e.g., LSI SAS2008, SAS2308, SAS3008) to find the correct firmware and flashing utility. Firmware is usually available from Broadcom's support site (they acquired LSI).
  • Download the IT mode firmware file (.bin or .rom) and the appropriate flashing utility (sas2flash.exe for SAS2008/2308, sas3flash.efi or similar for SAS3008).
  • Create a bootable USB drive (FreeDOS is commonly used for older sas2flash utilities; UEFI shell for newer sas3flash).
  • Crucially, record your card's original SAS address. This unique identifier is sometimes wiped during flashing and may need to be restored (sas2flash -o -sasadd <address>). Backing up the original firmware first (sas2flash -o -s <backup_filename>.rom) is also recommended if possible.
• The Process (Example using sas2flash): Boot from the USB drive and use commands similar to these:
  1. sas2flash -listall: Identify the controller number (e.g., 0, 1).
  2. sas2flash -o -e 6 -c 0: Erase the existing firmware and BIOS on controller 0 (use appropriate controller number; e 6 or e 7 depending on flash chip size). This is destructive!
  3. sas2flash -o -f <firmware_filename>.bin -c 0: Flash the new IT mode firmware.
  4. sas2flash -o -b <bios_filename>.rom -c 0: (Optional) Flash the BIOS/OpROM if needed for booting from the card. Many IT mode flashes omit this.
  5. Verify the SAS address and flash it back if necessary.
• Common Issues: Cards not being detected (try different PCIe slots, ensure correct utility), failed erases (sometimes requires specific command sequences or masking the PCIe pins), "bricked" cards (often recoverable with specific procedures found online), and losing the SAS address. Proceed with caution and follow guides specific to your card model.

Cable Selection and Compatibility

Using the correct, high-quality cables is vital for stable operation.

• Internal Cables (Card to Backplane/Drives):
  • SFF-8087 (Mini-SAS): Used on older 6Gb/s cards (like 9211-8i, 9207-8i). Typically connects to backplanes or breakout cables. Keep lengths reasonable (under 1 meter) and avoid cheap, poorly shielded cables which can cause errors. Angled connectors can help in tight chassis.
  • SFF-8643 (Mini-SAS HD): Used on newer 12Gb/s cards (like 9300-8i). Offers better signal integrity for higher speeds but is not physically compatible with SFF-8087 ports.
• Breakout Cables (Card Port to Individual Drives):
  • Forward Breakout (e.g., SFF-8087 to 4x SATA): The most common type for connecting SATA drives directly to an HBA's internal port. One cable connects up to 4 drives.
  • Reverse Breakout (e.g., 4x SATA to SFF-8087): Less common, used to connect motherboard SATA ports to a SAS backplane. Ensure you buy the correct type!
• Quality Matters: Look for cables with good shielding, proper wire gauge (AWG), and sturdy connectors from reputable brands. Poor cables are a frequent source of drive dropouts and performance issues.

System Requirements

Ensure your server is ready for the HBA.

• Motherboard: You need a compatible PCIe slot. While many HBAs are x8 cards, they will often work in an x16 slot. Check your motherboard manual to ensure the slot provides enough electrical lanes (x4, x8, x16) for your desired performance. Ensure the BIOS/UEFI recognizes the card; updates might be needed.
• Power: HBAs draw power from the PCIe slot (typically up to 25W, sometimes more for high-end cards). More importantly, ensure your Power Supply Unit (PSU) has enough capacity and the necessary connectors (SATA/Molex) for all the drives you plan to connect. Consider a UPS (Uninterruptible Power Supply) appropriately sized for your total system draw.
• Cooling: HBAs, especially higher-port-count or faster models, can get hot. Ensure good airflow over the PCIe slot area. In dense builds, monitor card temperatures (via OS tools if supported) and consider adding fans if necessary to prevent thermal throttling or instability.

Common Troubleshooting Issues

Even with careful setup, you might encounter problems:

• Drive Detection:
  • Not Showing Up: Double-check cable connections (both ends!), ensure drives are receiving power (spin-up), verify HBA firmware flashed correctly, and check OS compatibility/drivers. If using a backplane, ensure it's compatible (some require specific SAS expander types).
  • Speed Issues: Drives negotiating at lower speeds (e.g., 3Gb/s instead of 6Gb/s) can point to faulty cables, incompatible backplanes, or drive firmware issues.
• Performance:
  • Bottlenecks: Slow transfers can be caused by the PCIe slot bandwidth limit, slow drives, high CPU usage from software RAID, incorrect drivers, or cable issues. Monitor system resources during transfers.
• Boot Problems:
  • OS Not Seeing HBA: Ensure correct drivers are installed or loaded during OS installation.
  • UEFI/BIOS Conflicts: If booting from the HBA, ensure the firmware's boot support matches your system's mode (UEFI or Legacy). Check boot order priorities.
• Stability: Random drive dropouts or system crashes can stem from overheating, insufficient power, driver conflicts, bad cables, or faulty hardware (HBA, drive, or motherboard).

Ongoing Maintenance

Keep your storage subsystem healthy:

• Check for firmware updates periodically for your HBA and drives.
• Set up S.M.A.R.T. monitoring to proactively check drive health.
• Monitor temperatures of the HBA and drives.
• Regularly review system error logs for storage-related warnings.
• Most importantly: Verify your backups regularly!

Addressing these points during installation and being aware of potential issues will help you build a stable and reliable storage foundation for your homelab using an HBA.

Conclusion

Choosing the right Host Bus Adapter is a foundational step in building a capable and reliable homelab storage system. As we've seen, for most modern homelab applications, particularly those leveraging powerful software-defined storage solutions like ZFS or unRAID, a SAS HBA flashed to IT mode offers the ideal combination of direct drive access, performance, and flexibility.

Remember the key takeaways: understand the difference between internal and external ports based on your chassis needs, leverage the compatibility of SAS HBAs with cost-effective SATA drives, and carefully match the card's port count, SAS speed (6Gb/s or 12Gb/s), and PCIe interface requirements to your specific server build and future expansion goals. Don't overlook the importance of quality cables and ensuring your system has adequate power and cooling.

While the used enterprise market offers fantastic value, especially with popular LSI/Broadcom models, always buy from reputable sources and be prepared for potential firmware flashing. Investing a little time in selecting the right HBA pays dividends in system stability, data integrity, and the scalability of your homelab for years to come.

Now that you're armed with this knowledge, you're ready to find the HBA that will serve as the backbone for your next exciting homelab project. Happy building!
